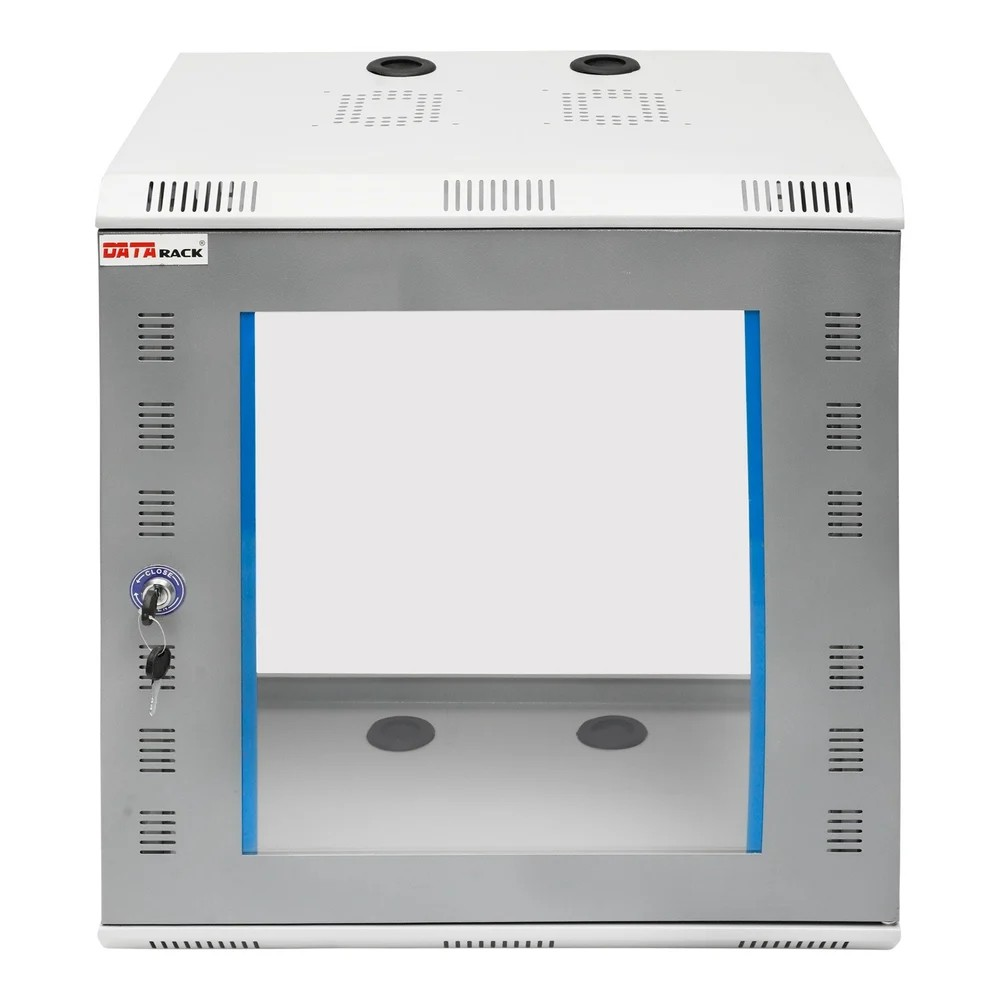

About 12U NETWORKING DATARACK  ,
DATARACK Wall Mount Rack specially designed for small Networking, Domestic application, Audio Video, Telecom and Lab applications. Rack are fabricated out of CRAC Steel Powder coated with highest quality standards.

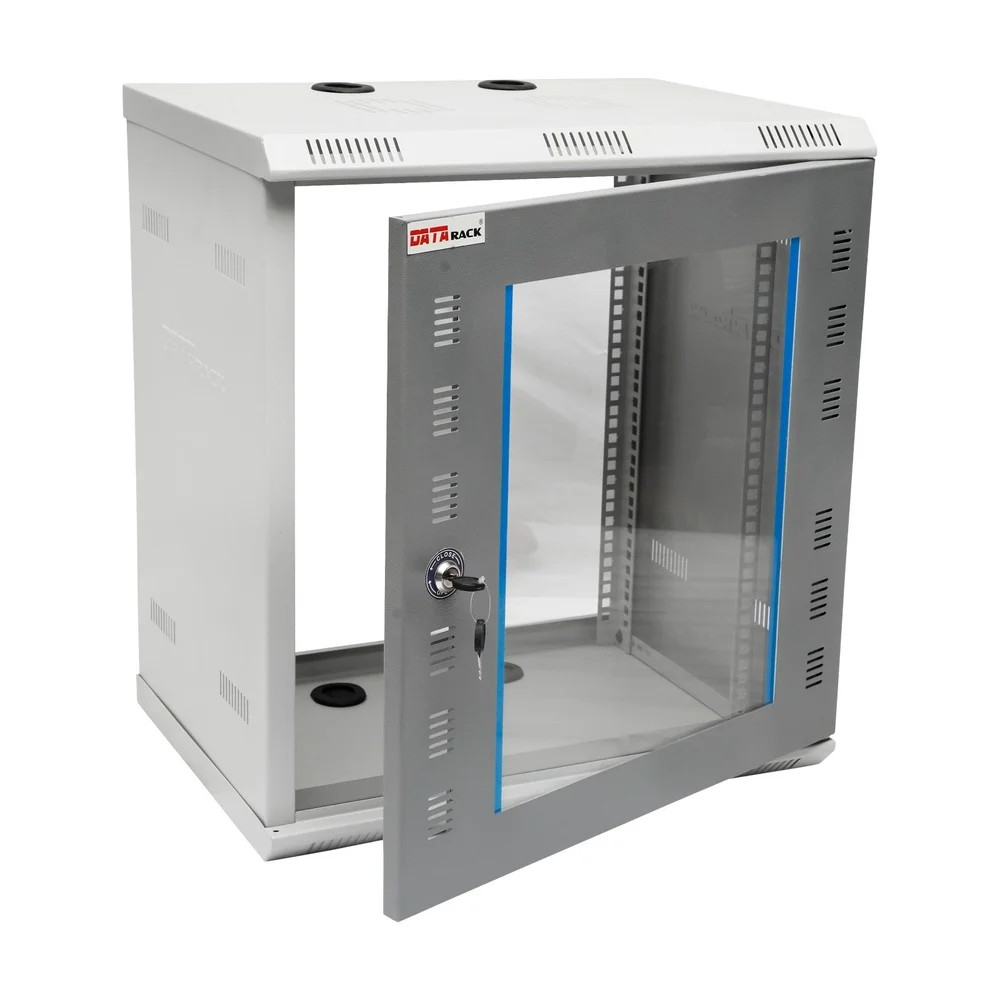

Configuration for standard racks are welded frame (CKD) integrated with side panels and vented top cover with fan mounting provision, Rear Side of the rack provided the provision to mount the rack on the wall and front toughened glass door with lock and key provides you the visibility and security for your equipments.

Racks are available from 4U - 15U Variants with Following Dimension:

• Width - 550mm x Depth - 400mm / 500mm / 600mm

Note:

• We can make customized requirements and other models on request
•  1U = 44.45mm

Product Features:

•  Conforms to DIN 41494 OR equivalent ISO Standards
• Adjustable 19 equipment mounting verticals provide better mounting flexibility and maximizes the usable mounting space
• Depth adjustable mounting slots
• Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
• Top and bottom Panel with ventilation and cable entry provision
• Provision to mount cooling fans on the top panel 1 or 2 Fans
• Powder coated finish
• Grounding and Bonding Options. 100% assured compatibility with all equipment conforming to DIN 41494 (General industrial standard for equipment)

Optional Accessories

• Cooling Fans
• Power Distribution Units
• Cable Manager MS or PVC
• Cantilever Tray / Shelf Tray
• Mounting Hardware
